ACTIVE DIRECTORY DOMAIN SERVICE

ACTIVE DIRECTORY DOMAIN SERVICE
It is a centralized database management system that store information about   user,computer,groups,printers,security settings,server configuration,Network infrastructure configuration and so on centrally.

#Directory service(DS):-Developed by IETF.
Directory service define the relationship between two object in any manner.It use protocol called LDAP (Lightweight directory access protocol) port no 389.
 #AD DS has following features:-

• It manages user logon process,authentication and directory searches.
• It manages the communication between user and domains.
• It stores directory data (called directory store), also AD DS has a mechanism to locate and retrieve information from the system.
• By using AD DS, we can implement a centralized control all the available resources (like user, computers and data access) inside the company.
• Server running AD DS is called as domain controler.

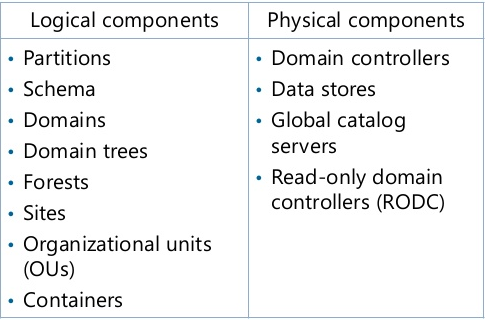

#Component of AD DS:-

#Forest:-

• It is a grouping or hierarchical arrangement of one or more separate independent domain trees.
• It has highest level in the Active Directory.
• It is the logical security boundary for an Enterprise.
• It shares the sinfle database and a single global address list.
• It contains one or more domain container objects like Directory Structure,Global Catalog and Directory Schema etc.
• A forest contains multiple domain trees.The first domain in the forest is called as a Forest Root Domain.
• By default a user or administrator of one forest cannot access another forest.

#Domain:-

• It is logical security boundary that store information about user,group,computer,printer etc.
• It have a fully Qualified domain name(FQDN)  that identified a domain name in enterprise network.
• A Domain is managed by a physical machine known as Domain controller.
• A domain managed by a domain controller is used to provide authentication service and authorization for the objects stored in its database.
• All domain controllers hold a copy of the domain database, this domain database is continuously synchronized.

#Domain Tree:-

• Two or more Domains that share common schema and global catalog.
• It is a collection of domains grouped together in a hierarchical structure.
• Domain tree support parent-child concept(parent domain and child domain)
• It contains Namespace like enhanceofit.com(parent domain) and delhi.enhanceofit.com(child domain of parent).
